03102

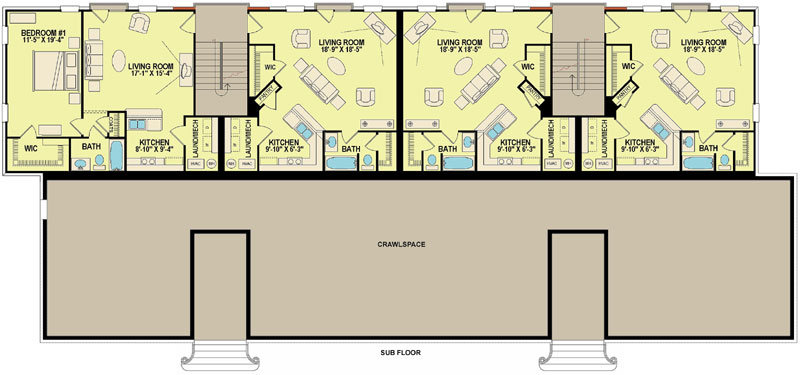

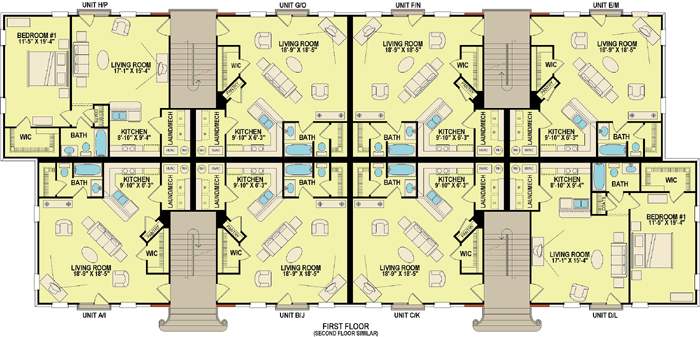

Floorplan 1
03102
Efficiently designed 20-unit apartment building offering a smart mix of unit types, ideal for maximizing occupancy and long-term return. The plan features 15 thoughtfully designed efficiency units with integrated pull-out sofa sleepers, alongside 5 one-bedroom units, providing flexibility to meet a wide range of tenant needs.
PDF – Single Build
Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.
Description
20-Unit Apartment Plan
This efficiently designed 20-unit apartment building offers a smart mix of unit types, ideal for maximizing occupancy and long-term return. The plan features 15 thoughtfully designed efficiency units with integrated pull-out sofa sleepers, alongside 5 one-bedroom units, providing flexibility to meet a wide range of tenant needs.
Each unit is designed with simplicity and functionality in mind, offering comfortable living spaces within a compact footprint. The layout supports ease of maintenance and operational efficiency, making it especially attractive for developers focused on workforce housing, extended stay, or high-demand rental markets.

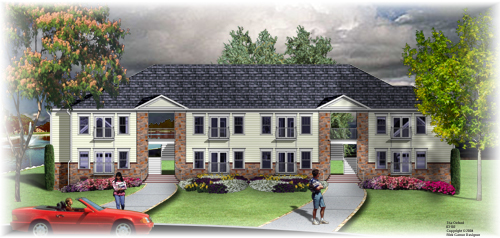

The two-story structure is built on a slab foundation with a clean, flat roofline, delivering a modern, low-maintenance exterior. With a building footprint of 122’ 0” wide by 51’ 0” deep, this plan is well-suited for efficient site utilization across a variety of developments.
Designed for practicality and scalability, this plan provides a strong foundation for consistent performance across multiple builds.
Important Information
Modifications Available. Due to variations in soil conditions, climate, and local codes, stock plans are not engineered nor sealed by an architect
| Designer Plan Number | 03102 |
|---|---|
| Bedrooms Per Unit | 1 |
| Bathrooms per Unit | 1 |
| Plan Width | 122 ' 0 " |
| Plan Depth | 51 ' 0 " |
| Main Ceiling | 8 ' 0 " |
| 2nd Ceiling | 0 ' 0 " |
| Slab Foundation | yes |
| Foundation Crawl Space | no |
| Foundation Basement Additional | no |
| Foundation Pier | no |
|---|---|
| Foundation Standard Basement | no |
| Roof Pitch | 12 in 6 |
| Building Floors | 2 |
| Unit Floors | 1 |
| First Floor Area | 626 sq.ft |
| 2nd Floor Area | 777 sq.ft |
| Total Living Area | 626 sq.ft |
| Total Plan Area | 13275 sq.ft |
