1105

1105

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Plan Options

Choose Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use. Our Editable CAD files + PDF Includes the Complete PDF (with unlimited build rights) and is great for for advanced customisation, engineering, and repeated construction use.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

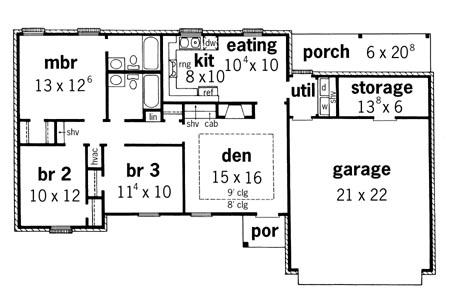

1105 Floorplan 1

Description

The elegant blend of stucco and brick accented by the brick quoins gives this traditional southern design an air of sophistication.This home features,covered front & rear porches,open kitchen with eating area,fireplace & built-ins in den.The plan is completed by a full size, two car garage and very spacious storage area.

Designer Plan Number 11051105
Bedrooms 3
Bathrooms 2
Plan Width 50100 ' 10 "
Plan Depth 8434 ' 2 "
Main Ceiling 0 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code A
Roof Pitch 8 in 12
Floors 1
First Floor Area 1121 sq.ft
Area Heated 1121 sq.ft
Total Living Area 1121 sq.ft
Total Plan Area 1736 sq.ft
Garage Bays 2
Garage Type Attached
