1201

1201

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Plan Options

Choose Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use. Our Editable CAD files + PDF Includes the Complete PDF (with unlimited build rights) and is great for for advanced customisation, engineering, and repeated construction use.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

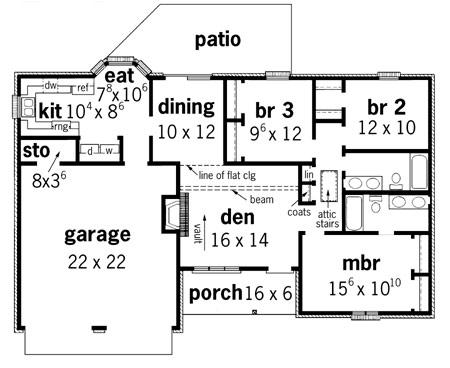

1201 Floorplan 1

Description

This design features, 3 bedrooms and 2 baths, vaulted ceiling in den, formal dining area, kitchen has bay window in eating area, master bedroom offers his and hers closets.

Designer Plan Number 12011201
Bedrooms 3
Bathrooms 2
Plan Width 46767 ' 6 "
Plan Depth 8434 ' 2 "
Main Ceiling 0 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Code A
Roof Pitch 12 in 12
Floors 1
First Floor Area 1239 sq.ft
Area Heated 1239 sq.ft
Total Living Area 1239 sq.ft
Total Plan Area 1752 sq.ft
