1202

1202

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Options

PDF – Unlimited Build

Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use.

CAD File + PDF – Unlimited Build

Editable CAD construction files + PDF for advanced customization, engineering, and repeated construction use. Includes unlimited build rights for the original purchaser.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Description

This plan features, 3 bedrooms and 2 baths, vaulted ceiling in den, spacious utility room, large closets, kitchen with breakfast bar, 2-car garage and double storage rooms.

Designer Plan Number 12021202
Bedrooms 3
Bathrooms 2
Plan Width 64 ' 10 "
Plan Depth 31 ' 10 "
Main Ceiling 8 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Code A
Roof Pitch 6 in 12
Floors 1
First Floor Area 1271 sq.ft
Area Heated 1271 sq.ft
Total Living Area 1271 sq.ft
Total Plan Area 1923 sq.ft
designer 42

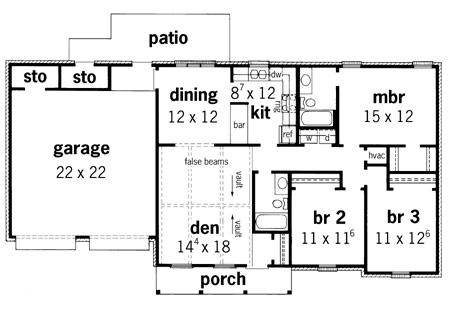

1202 Floorplan 1
