1209

1209

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Plan Options

Choose Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use. Our Editable CAD files + PDF Includes the Complete PDF (with unlimited build rights) and is great for for advanced customisation, engineering, and repeated construction use.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

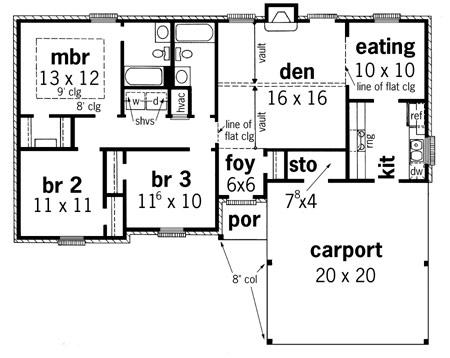

1209 Floorplan 1

Description

This Traditional design is accented by the use of elegant brick and quoins. This plan features, 3 bedrooms and 2 baths, separate entry foyer, vaulted ceiling in den, raised ceiling in master bedroom, 2-car carport with ample storage space.

Designer Plan Number 12091209
Bedrooms 3
Bathrooms 2
Plan Width 42600 ' 10 "
Plan Depth 8434 ' 2 "
Main Ceiling 0 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Code A
Roof Pitch 8 in 12
Floors 1
First Floor Area 1221 sq.ft
Area Heated 1221 sq.ft
Total Living Area 1221 sq.ft
Total Plan Area 1689 sq.ft
