Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.
This southern traditional styled home has a charming curb appeal with its brick exterior and covered front porch with handrail. This plan features, split bedrooms, raised ceiling in master,vaulted ceiling in den with built-in cabinets and fireplace, The dining room is open to the den creating the great room feel for this area. The plan is completed by a full size, two car garage and storage area.
| Designer Plan Number | 12131213 |
|---|---|
| Bedrooms | 3 |
| Bathrooms | 2 |
| Plan Width | 51 ' 10 " |
| Plan Depth | 40 ' 4 " |
| Main Ceiling | 8 ' 0 " |
| Second Ceiling | 0 ' 0 " |
| Foundation Slab | yes |
| foundation Crawl Space | yes |
| Foundation Basement Additional | yes |
| Code | A |
|---|---|
| Roof Pitch | 8 in 12 |
| Floors | 1 |
| First Floor Area | 1293 sq.ft |
| Area Heated | 1293 sq.ft |
| Total Living Area | 1293 sq.ft |
| Total Plan Area | 1802 sq.ft |
| Garage Bays | 2 |
| Garage Type | Attached |
| designer | 42 |

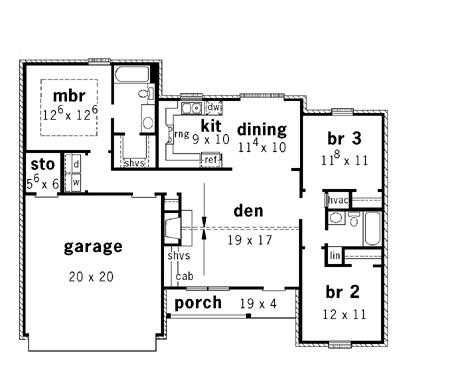

Floorplan 1
