1216

1216

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Options

PDF – Unlimited Build

Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use.

CAD File + PDF – Unlimited Build

Editable CAD construction files + PDF for advanced customization, engineering, and repeated construction use. Includes unlimited build rights for the original purchaser.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Description

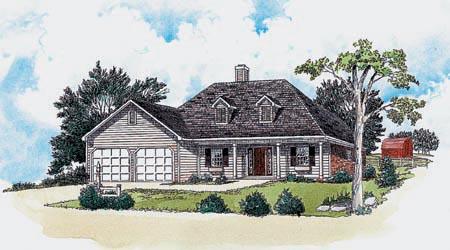

This sophisticated country styled home is accented by the combination of gable and hip roofs with dormers and a covered front porch.This plan features, split bedrooms, raised ceiling in master,vaulted ceiling in den with built-in cabinets & fireplace,open kitchen to dining area,separate utility & storage area.

Designer Plan Number 12161216
Bedrooms 3
Bathrooms 2
Plan Width 51 ' 10 "
Plan Depth 47 ' 0 "
Main Ceiling 9 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code A
Roof Pitch 8 in 12
Floors 1
First Floor Area 1294 sq.ft
Area Heated 1294 sq.ft
Total Living Area 1294 sq.ft
Total Plan Area 2043 sq.ft
Garage Bays 2
Garage Type Attached
designer 42

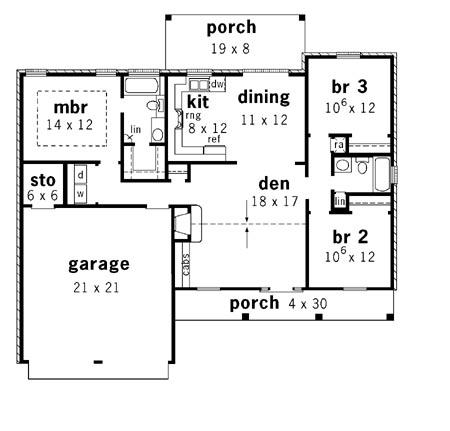

1216 Floorplan 1
