1316

1316

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Plan Options

Choose Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use. Our Editable CAD files + PDF Includes the Complete PDF (with unlimited build rights) and is great for for advanced customisation, engineering, and repeated construction use.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

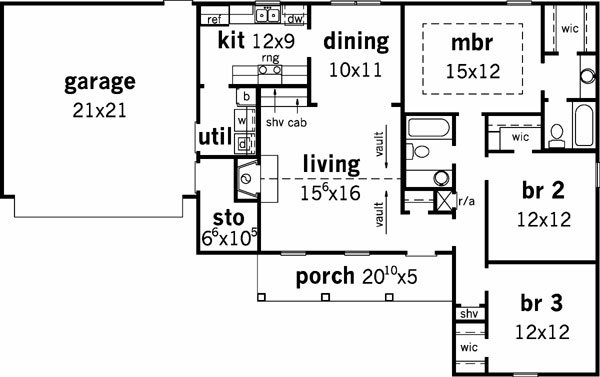

1316 Floorplan 1

Description

Traditional styling in a cost efficient design. This plan features spacious living area and walk in closets for all bedrooms. Large utility and ample storage space. Built-in cabinets and shelves in living area.

Designer Plan Number 13161316
Bedrooms 3
Bathrooms 2
Plan Width 5343 ' 4 "
Plan Depth 10 ' 0 "
Main Ceiling 0 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code A
Roof Pitch 8 in 12
Floors 1
First Floor Area 1300 sq.ft
Area Heated 1300 sq.ft
Total Living Area 1300 sq.ft
Total Plan Area 1910 sq.ft
Garage Bays 2
Garage Type Attached
