1317

1317

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Options

PDF – Unlimited Build

Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use.

CAD File + PDF – Unlimited Build

Editable CAD construction files + PDF for advanced customization, engineering, and repeated construction use. Includes unlimited build rights for the original purchaser.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Description

3 Bedrooms, 2 Baths,
Split Bedroom Plan,
Vaulted Ceiling in Den,
Covered Front Entrance,
Raised ceiling in Master,
Fireplace w/ Built Ins in Den,

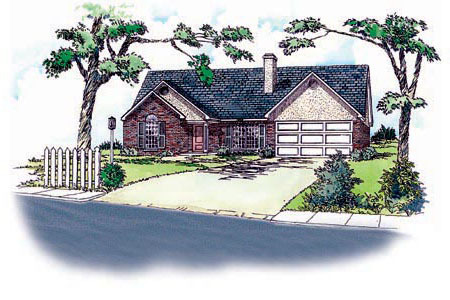

Southern traditional Styling

Designer Plan Number 13171317
Bedrooms 3
Bathrooms 2
Plan Width 50 ' 0 "
Plan Depth 41 ' 10 "
Main Ceiling 8 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code A
Roof Pitch 8 in 12
Floors 1
First Floor Area 1361 sq.ft
Area Heated 1361 sq.ft
Total Living Area 1361 sq.ft
Total Plan Area 1815 sq.ft
Garage Bays 2
Garage Type Attached
designer 42

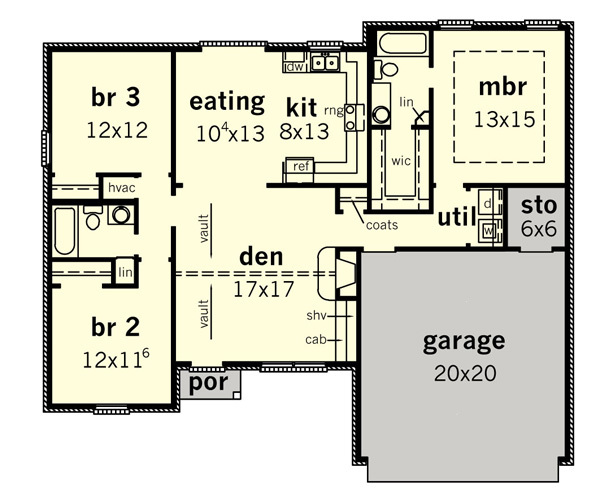

1317 Floorplan 1
