1406

1406

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Plan Options

Choose Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use. Our Editable CAD files + PDF Includes the Complete PDF (with unlimited build rights) and is great for for advanced customisation, engineering, and repeated construction use.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

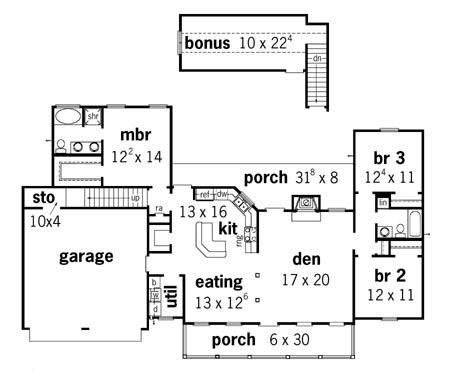

1406 Floorplan 1

Description

This beautiful country styled home is perfect for the growing family. This plan features, split bedrooms, open eat-in kitchen with breakfast bar, whirlpool tub with separate shower in the master bedroom and a bonus room over the garage.

Designer Plan Number 14061406
Bedrooms 3
Bathrooms 2
Plan Width 5843 ' 4 "
Plan Depth 10 ' 0 "
Main Ceiling 0 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code A
Roof Pitch 12 in 12
2nd Roof Pitch 8 in 12
Floors 1
First Floor Area 1476 sq.ft
Bonus Floor Area 279 sq.ft
Area Heated 1476 sq.ft
Total Living Area 1476 sq.ft
Total Plan Area 2641 sq.ft
Garage Bays 2
Garage Type Attached
