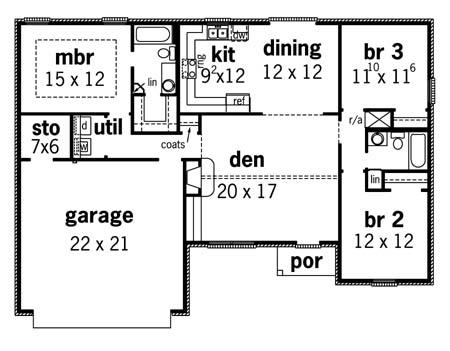

1407 Floorplan 1

Description

The traditional styling of this home is most appealing with the combination of brick and stucco exterior. This plan features, 3 bedrooms and 2 baths in a split fashion, covered front entrance, vaulted ceiling in den with fireplace and built-in cabinets, raised ceiling in master with walk-in closet and separate utility. The plan finishes with a full size two car garage and large storage area.

Designer Plan Number 14071407
Bedrooms 3
Bathrooms 2
Plan Width 45100 ' 10 "
Plan Depth 8434 ' 2 "
Main Ceiling 0 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code A
Roof Pitch 8 in 12
Floors 1
First Floor Area 1408 sq.ft
Area Heated 1408 sq.ft
Total Living Area 1408 sq.ft
Total Plan Area 1935 sq.ft
Garage Bays 2
Garage Type Attached
