1408

1408

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Plan Options

Choose Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use. Our Editable CAD files + PDF Includes the Complete PDF (with unlimited build rights) and is great for for advanced customisation, engineering, and repeated construction use.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

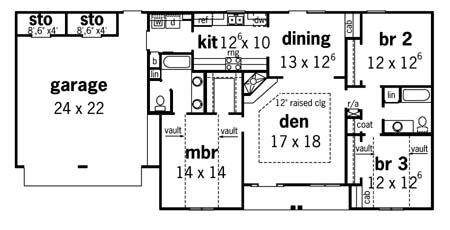

1408 Floorplan 1

Description

The elegant country styling of this home is stunning as well as functional with its split bedroom plan. This plan features 3 bedrooms and 2 baths, raised ceiling in den with corner fireplace, vaulted ceiling in master bedroom and bedroom 3, walk-in closet and double vanity in master bedroom. The plan also offers a full size two-car garage with double storage rooms.

Designer Plan Number 14081408
Bedrooms 3
Bathrooms 2
Plan Width 5760 ' 6 "
Plan Depth 10 ' 0 "
Main Ceiling 0 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code A
Roof Pitch 9 in 12
2nd Roof Pitch 12 in 12
Floors 1
First Floor Area 1476 sq.ft
Area Heated 1476 sq.ft
Total Living Area 1476 sq.ft
Total Plan Area 2140 sq.ft
Garage Bays 2
Garage Type Attached
