1414

1414

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Plan Options

Choose Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use. Our Editable CAD files + PDF Includes the Complete PDF (with unlimited build rights) and is great for for advanced customisation, engineering, and repeated construction use.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

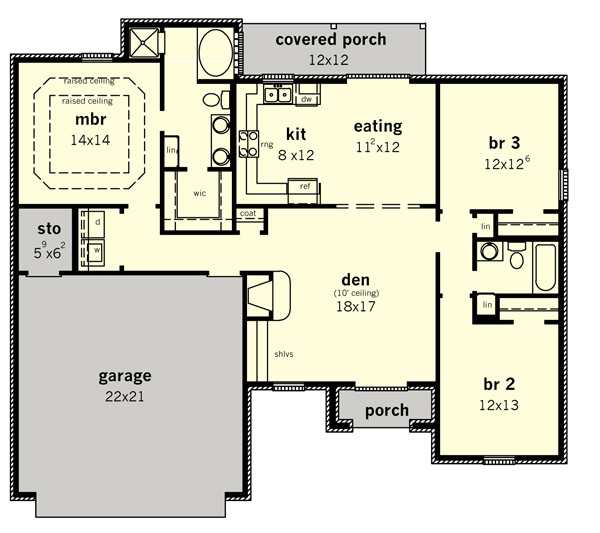

1414 Floorplan 1

Description

3 Bedrooms, 2 Baths,
Split Bedroom Plan,
Double Raised Ceiling in Master,
Oversized den w/ 10′ Ceilings,
Covered Front and Rear Porches,

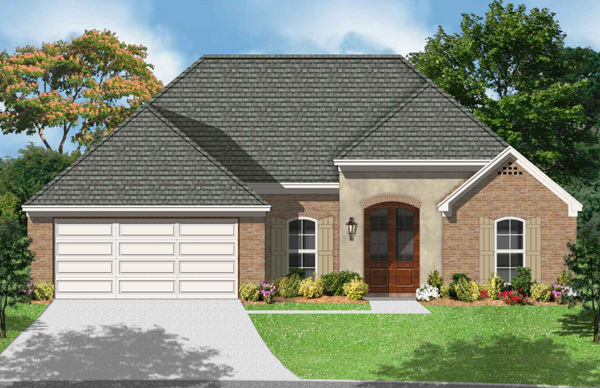

French Country Styling,
Separate Utility and Storage,
Separate Shower & Tub in Master

Designer Plan Number 1414
Bedrooms 3
Bathrooms 2
Plan Width 52 ' 10 "
Plan Depth 45 ' 8 "
Main Ceiling 8 ' 0 "
Second Ceiling 10 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Roof Pitch 9 in 12
Floors 1
First Floor Area 1470 sq.ft
Area Heated 1470 sq.ft
Total Living Area 1470 sq.ft
Total Plan Area 2111 sq.ft
Garage Bays 2
Garage Type Attached
