1417

1417

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Plan Options

Choose Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use. Our Editable CAD files + PDF Includes the Complete PDF (with unlimited build rights) and is great for for advanced customisation, engineering, and repeated construction use.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

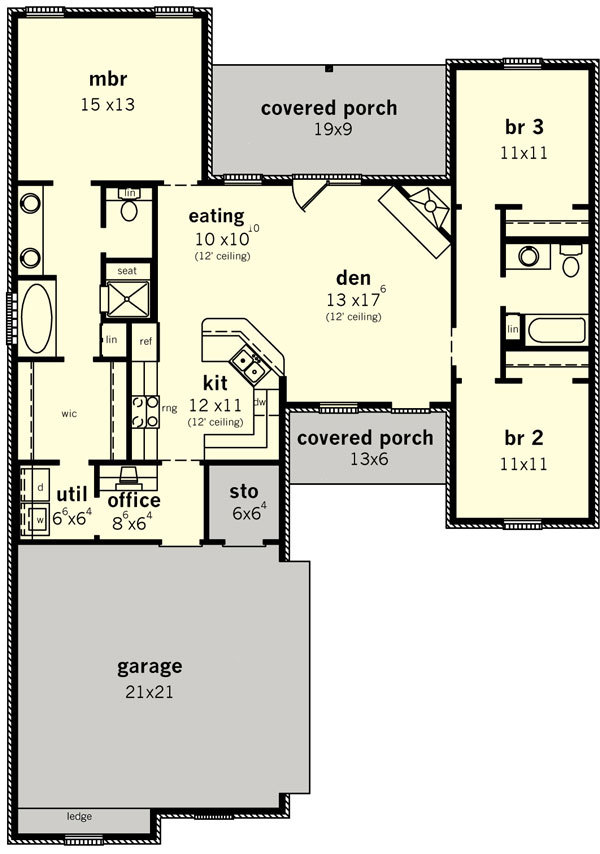

1417 Floorplan 1

Description

3 Bedrooms, 2 Baths,
Split Bedroom Plan,
Elegant Master Bath w/ Toilet Compartment,
12′ Ceilings in Den, Eating & Kitchen,
Covered Front and Rear Porches,
Courtyard Entrance Garage,
Separate Utility and Storage,
Computer Room,
Georgian Styling

Designer Plan Number 14171417
Bedrooms 3
Bathrooms 2
Plan Width 37600 ' 10 "
Plan Depth 8434 ' 2 "
Main Ceiling 0 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab Yes
foundation Crawl Space Yes
Foundation Basement Additional Yes
Foundation Pier Yes
foundation Basement Standard Yes
Code A
Roof Pitch 8 in 12
2nd Roof Pitch 12 in 12
Floors 1
First Floor Area 1442 sq.ft
Area Heated 1442 sq.ft
Total Living Area 1442 sq.ft
Total Plan Area 2192 sq.ft
Garage Bays 2
Garage Type Attached
