1507

1507

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Plan Options

Choose Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use. Our Editable CAD files + PDF Includes the Complete PDF (with unlimited build rights) and is great for for advanced customisation, engineering, and repeated construction use.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

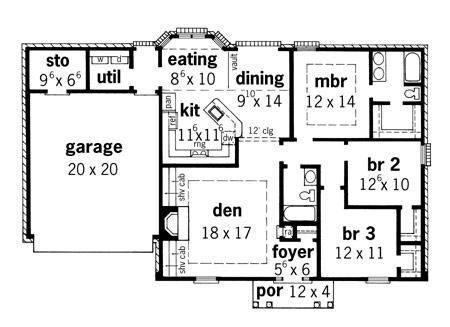

1507 Floorplan 1

Description

The elegant blend of stucco and brick accented by quoins, arched top windows and columns gives this traditional design an air of sophistication. This plan features, 3 bedrooms and 2 baths, raised ceiling in master bedroom and den, open kitchen with breakfast bar, bay window in breakfast area, vaulted ceiling in dining area, walk-in closets in all bedrooms and covered front porch.

Designer Plan Number 15071507
Bedrooms 3
Bathrooms 2
Plan Width 50100 ' 10 "
Plan Depth 427 ' 1 "
Main Ceiling 0 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code B
Roof Pitch 8 in 12
Floors 1
First Floor Area 1531 sq.ft
Area Heated 1531 sq.ft
Total Living Area 1531 sq.ft
Total Plan Area 2041 sq.ft
