PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Plan Options

Choose Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use. Our Editable CAD files + PDF Includes the Complete PDF (with unlimited build rights) and is great for for advanced customisation, engineering, and repeated construction use.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

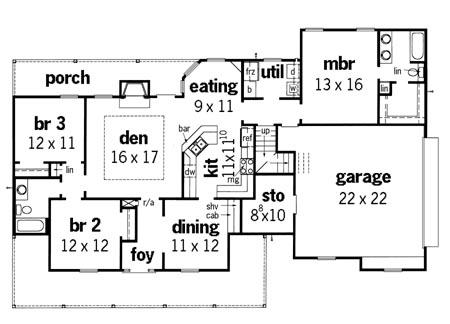

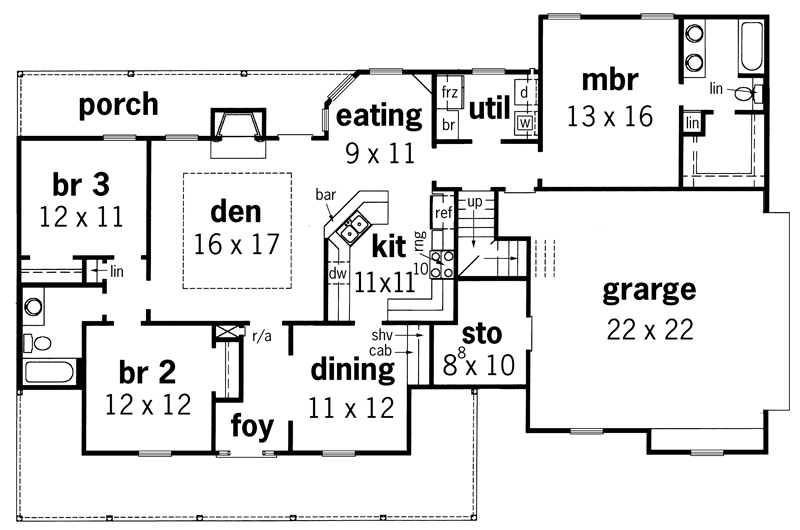

1509 Floorplan 1

Description

This country traditional styled home is accented by its wrap around porch and split bedroom plan. This plan features, 3 bedrooms and 2 baths, formal entry foyer, dining room, spacious den with fireplace, and large eat-in kitchen with breakfast bar. The master suite features tub, double vanity and large walk-in closet. This plan also offers a bonus room over the garage.

Designer Plan Number 15091509
Bedrooms 3
Bathrooms 2
Plan Width 5677 ' 2 "
Plan Depth 10 ' 0 "
Main Ceiling 0 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code B
Roof Pitch 8 in 12
2nd Roof Pitch 12 in 12
Floors 1
First Floor Area 1573 sq.ft
Bonus Floor Area 292 sq.ft
Area Heated 1573 sq.ft
Total Living Area 1573 sq.ft
Total Plan Area 2954 sq.ft
Garage Bays 2
Garage Type Attached
