1518

1518

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Plan Options

Choose Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use. Our Editable CAD files + PDF Includes the Complete PDF (with unlimited build rights) and is great for for advanced customisation, engineering, and repeated construction use.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

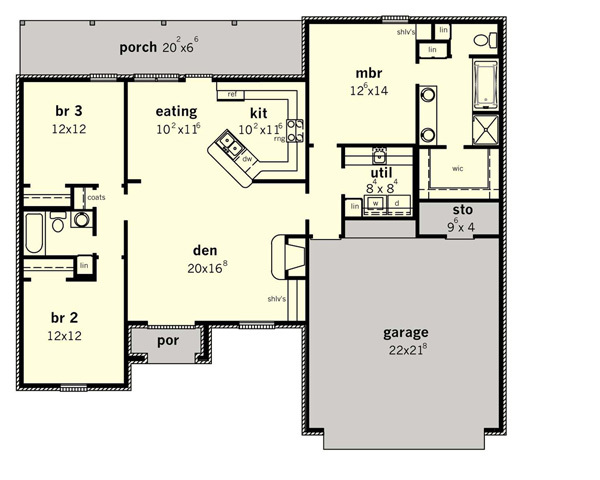

1518 Floorplan 1

Description

3 Bedrooms, 2 Baths
Split Bedroom Plan
Shower & garden tub in Master
Large Walk In Closet in Master
11′ Ceiling in Den
Covered Front and Rear Porches
Country French Styling
Separate Utility and Storage

Designer Plan Number 15181518
Bedrooms 3
Bathrooms 2
Plan Width 45100 ' 10 "
Plan Depth 8434 ' 2 "
Main Ceiling 0 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code B
Roof Pitch 9 in 12
2nd Roof Pitch 12 in 12
Floors 1
First Floor Area 1514 sq.ft
Area Heated 1514 sq.ft
Total Living Area 1514 sq.ft
Total Plan Area 2285 sq.ft
Garage Bays 2
Garage Type Attached
