1520

1520

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Options

PDF – Unlimited Build

Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use.

CAD File + PDF – Unlimited Build

Editable CAD construction files + PDF for advanced customization, engineering, and repeated construction use. Includes unlimited build rights for the original purchaser.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Description

3 Bedrooms, 2 Baths,
Split Bedroom Plan,
Raised Ceiling in Master,
12′ Ceiling in Eating, Kitchen & Den,
Home Office off Garage,
Covered Front and Rear Porches,
Classic Georgian Styling,
Separate Utility and Storage

Designer Plan Number 15201520
Bedrooms 3
Bathrooms 2
Plan Width 48 ' 10 "
Plan Depth 66 ' 0 "
Main Ceiling 9 ' 0 "
Second Ceiling 12 ' 0 "
Foundation Slab Yes
foundation Crawl Space Yes
Foundation Basement Additional Yes
Foundation Pier Yes
foundation Basement Standard Yes
Code B
Roof Pitch 8 in 12
2nd Roof Pitch 12 in 12
Floors 1
First Floor Area 1564 sq.ft
Area Heated 1564 sq.ft
Total Living Area 1564 sq.ft
Total Plan Area 2326 sq.ft
Garage Bays 2
Garage Type Attached
designer 42

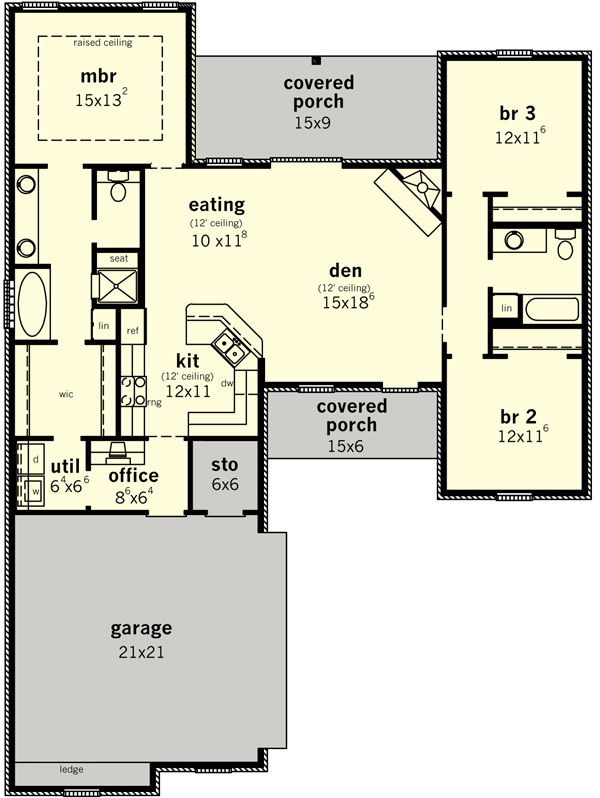

1520 Floorplan 1
