1610B

1610B

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Plan Options

Choose Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use. Our Editable CAD files + PDF Includes the Complete PDF (with unlimited build rights) and is great for for advanced customisation, engineering, and repeated construction use.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

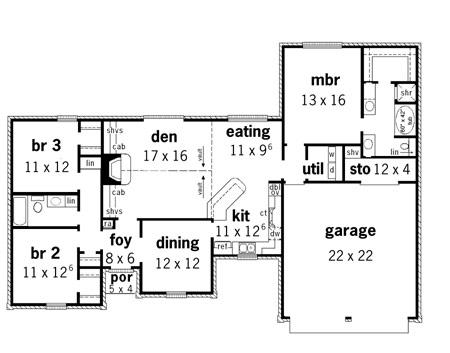

1610B Floorplan 1

Description

This Traditional design is accented by its elegant brick exterior and use of quoins. This plan features 3 bedrooms and 2 baths, separate entry foyer, fireplace flanked by built-in cabinets and shelves, spacious kitchen with breakfast bar and eating area, formal dining room, master bath has oversized tub and double vanities with large walk-in closet.

Designer Plan Number 1610B1610B
Bedrooms 3
Bathrooms 2
Plan Width 55100 ' 10 "
Plan Depth 8434 ' 2 "
Main Ceiling 0 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code B
Roof Pitch 10 in 12
Floors 1
First Floor Area 1680 sq.ft
Area Heated 1680 sq.ft
Total Living Area 1680 sq.ft
Total Plan Area 2242 sq.ft
