1611

1611

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Plan Options

Choose Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use. Our Editable CAD files + PDF Includes the Complete PDF (with unlimited build rights) and is great for for advanced customisation, engineering, and repeated construction use.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

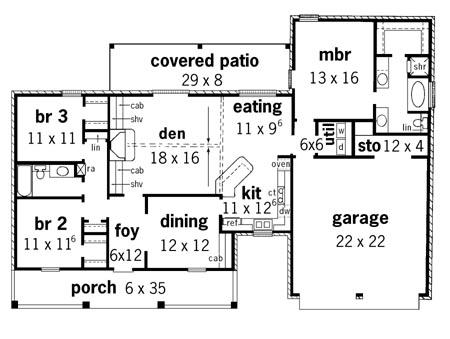

1611 Floorplan 1

Description

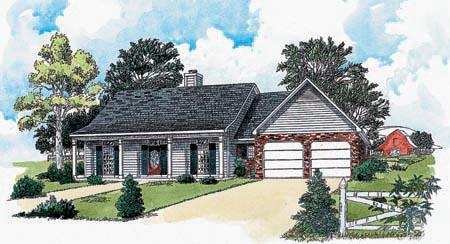

This traditional country styling of this home is most appealing with the covered front and rear porches and its split bedroom layout. This plan features a vaulted ceiling and fireplace flanked by cabinets and bookshelves which is open to the breakfast area and kitchen with an angled eating bar. The secluded master suite offers a private bath with whirlpool tub , separate shower, and walk-in closet.

Designer Plan Number 16111611
Bedrooms 3
Bathrooms 2
Plan Width 55100 ' 10 "
Plan Depth 427 ' 1 "
Main Ceiling 0 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code B
Roof Pitch 9 in 12
Floors 1
First Floor Area 1660 sq.ft
Area Heated 1660 sq.ft
Total Living Area 1660 sq.ft
Total Plan Area 2651 sq.ft
Garage Bays 2
Garage Type Attached
