PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Plan Options

Choose Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use. Our Editable CAD files + PDF Includes the Complete PDF (with unlimited build rights) and is great for for advanced customisation, engineering, and repeated construction use.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

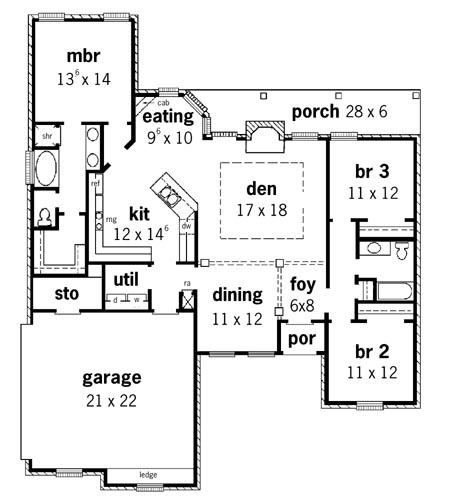

1612 Floorplan 1

Description

This classic blend of stucco and brick accented by arched top windows, quoins, and dentil mould gives this design an air of elegance. Open columns creating a dynamic appearance with their raised ceilings; separate the den, dining, and foyer. This split bedroom plan offers maximum privacy for all family members as well as convenience for entertaining. The master suite features a double vanity,whirlpool tub and separate shower& all located off the spacious kitchen, with angled eating bar, and breakfast area featuring a large bay window.

Designer Plan Number 16121612
Bedrooms 3
Bathrooms 2
Plan Width 42600 ' 10 "
Plan Depth 8434 ' 2 "
Main Ceiling 0 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code B
Roof Pitch 10 in 12
Floors 1
First Floor Area 1668 sq.ft
Area Heated 1668 sq.ft
Total Living Area 1668 sq.ft
Total Plan Area 2402 sq.ft
Garage Bays 2
Garage Type Attached
