PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Options

PDF – Unlimited Build

Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use.

CAD File + PDF – Unlimited Build

Editable CAD construction files + PDF for advanced customization, engineering, and repeated construction use. Includes unlimited build rights for the original purchaser.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Description

This plan features 3 bedrooms and 2 baths in a split layout. Vaulted ceiling in den, kitchen with eating area, and breakfast bar, master bath offers separate shower and whirlpool tub, formal dining room, separate entry foyer, fireplace flanked by cabinets and shelves.

Designer Plan Number 16131613
Bedrooms 3
Bathrooms 2
Plan Width 67 ' 10 "
Plan Depth 44 ' 10 "
Main Ceiling 8 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Code B
Roof Pitch 12 in 12
Floors 1
First Floor Area 1671 sq.ft
Area Heated 1671 sq.ft
Total Living Area 1671 sq.ft
Total Plan Area 2230 sq.ft
otherplans 1610,1611
designer 42

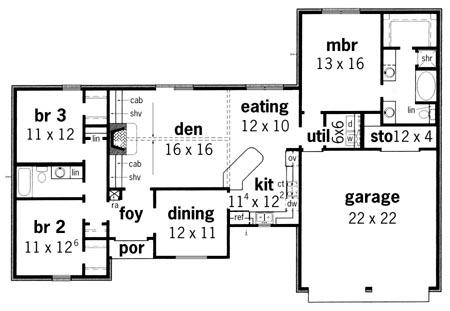

1613 Floorplan 1
