1614

1614

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Plan Options

Choose Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use. Our Editable CAD files + PDF Includes the Complete PDF (with unlimited build rights) and is great for for advanced customisation, engineering, and repeated construction use.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

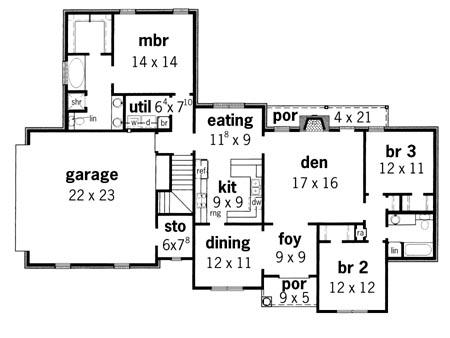

1614 Floorplan 1

Description

This French design features 3 bedrooms and 2 baths in a split plan layout. Master suite features large walk-in closet and plush bath, formal dining room, separate entry foyer, spacious kitchen with eating area, covered front and rear porches.

Designer Plan Number 16141614
Bedrooms 3
Bathrooms 2
Plan Width 57600 ' 10 "
Plan Depth 427 ' 1 "
Main Ceiling 0 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Code B
Roof Pitch 14 in 12
2nd Roof Pitch 12 in 12
Floors 1
First Floor Area 1672 sq.ft
Area Heated 1672 sq.ft
Total Living Area 1672 sq.ft
Total Plan Area 2628 sq.ft
