1615

1615

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Options

PDF – Unlimited Build

Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use.

CAD File + PDF – Unlimited Build

Editable CAD construction files + PDF for advanced customization, engineering, and repeated construction use. Includes unlimited build rights for the original purchaser.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Description

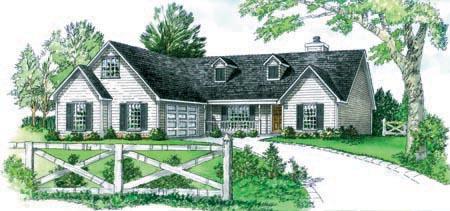

Large eat-in kitchen, split bedroom plan, separate entry foyer, large utility room, optional bonus room above garage, whirlpool tub and separate shower in master.

Designer Plan Number 16151615
Bedrooms 3
Bathrooms 2
Plan Width 55 ' 0 "
Plan Depth 65 ' 0 "
Main Ceiling 8 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code B
Roof Pitch 12 in 12
2nd Roof Pitch 10 in 12
Floors 1
First Floor Area 1610 sq.ft
Area Heated 1610 sq.ft
Total Living Area 1610 sq.ft
Total Plan Area 2481 sq.ft
designer 42

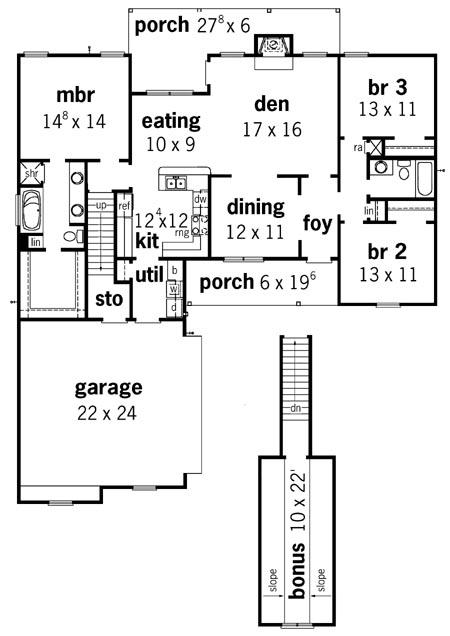

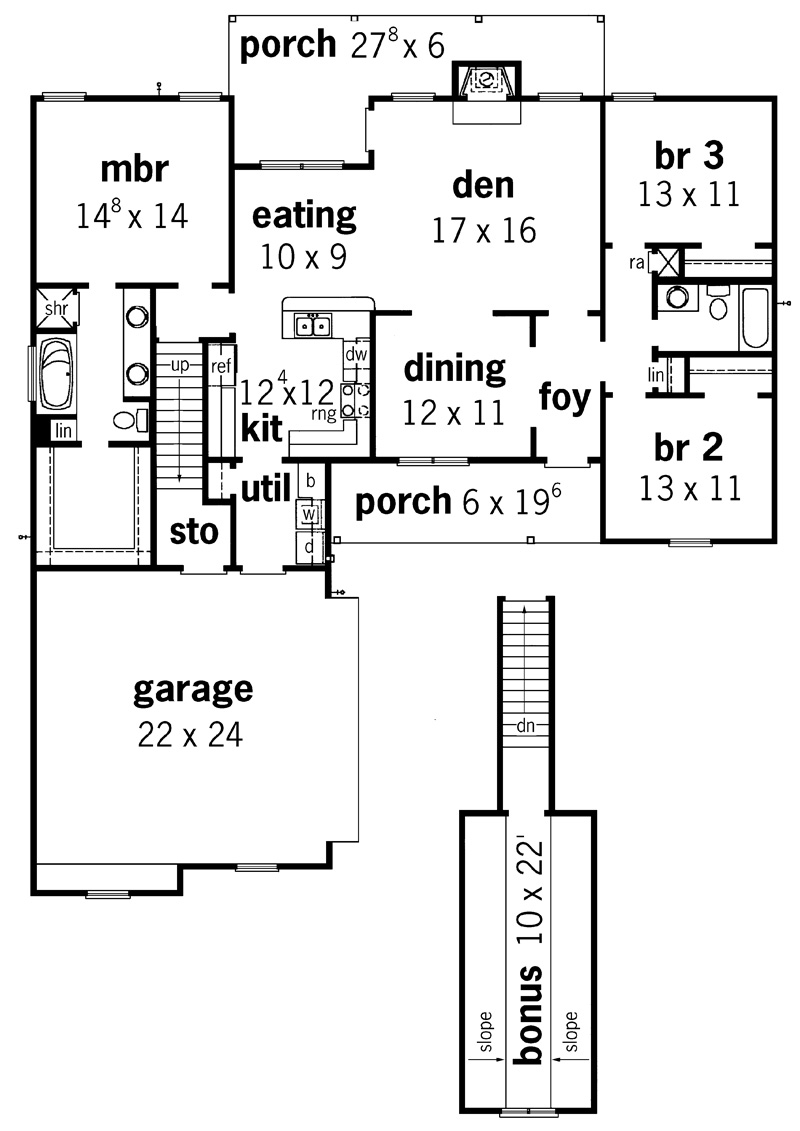

1615 Floorplan 1
