PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Plan Options

Choose Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use. Our Editable CAD files + PDF Includes the Complete PDF (with unlimited build rights) and is great for for advanced customisation, engineering, and repeated construction use.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

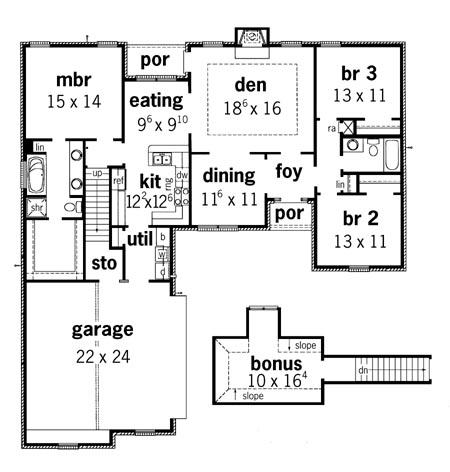

1616 Floorplan 1

Description

Separate entry foyer, formal dining area, large den, large eat-in kitchen, raised ceiling in master and den, split bedroom plan, rich traditional exterior.

Designer Plan Number 16161616
Bedrooms 3
Bathrooms 2
Plan Width 4676 ' 8 "
Plan Depth 10 ' 0 "
Main Ceiling 0 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code B
Roof Pitch 12 in 12
Floors 1
First Floor Area 1692 sq.ft
Bonus Floor Area 247 sq.ft
Area Heated 1692 sq.ft
Total Living Area 1692 sq.ft
Total Plan Area 2296 sq.ft
