PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Options

PDF – Unlimited Build

Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use.

CAD File + PDF – Unlimited Build

Editable CAD construction files + PDF for advanced customization, engineering, and repeated construction use. Includes unlimited build rights for the original purchaser.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Description

Vaulted ceiling in den, spacious walk-in closet on master suite, center island in kitchen, covered front and rear porches, arched top windows on front, bay window in den.

Designer Plan Number 16171617
Bedrooms 3
Bathrooms 2
Plan Width 60 ' 9 "
Plan Depth 50 ' 10 "
Main Ceiling 9 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code B
Roof Pitch 12 in 12
2nd Roof Pitch 10 in 12
Floors 1
First Floor Area 1621 sq.ft
Bonus Floor Area 258 sq.ft
Area Heated 1621 sq.ft
Total Living Area 1621 sq.ft
Total Plan Area 2611 sq.ft
Garage Bays 2
Garage Type Attached
designer 42

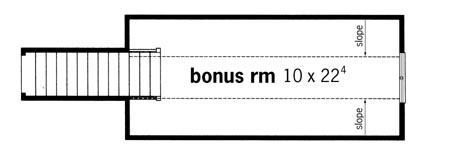

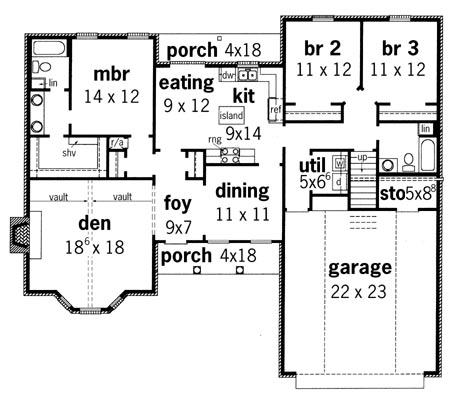

1617 Floorplan 1
