1619

1619

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Plan Options

Choose Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use. Our Editable CAD files + PDF Includes the Complete PDF (with unlimited build rights) and is great for for advanced customisation, engineering, and repeated construction use.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

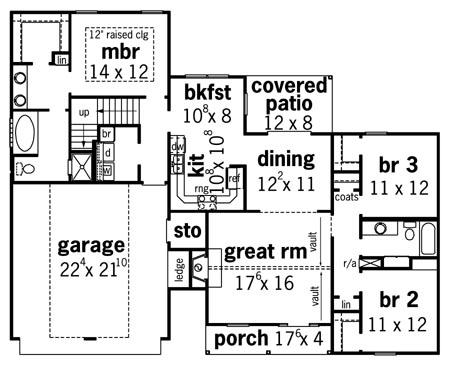

1619 Floorplan 1

Description

This charming country styled home is perfect for the growing family. This plan features, 3 bedrooms and 2 baths, formal dining room, spacious kitchen with breakfast area,walk-in closets in all bedrooms, master bath with whirlpool tub and separate shower. This plan also offers a bonus room over the full size two-car garage.

Designer Plan Number 16191619
Bedrooms 3
Bathrooms 2
Plan Width 5010 ' 0 "
Plan Depth 10 ' 0 "
Main Ceiling 0 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code B
Roof Pitch 12 in 12
Floors 1
First Floor Area 1624 sq.ft

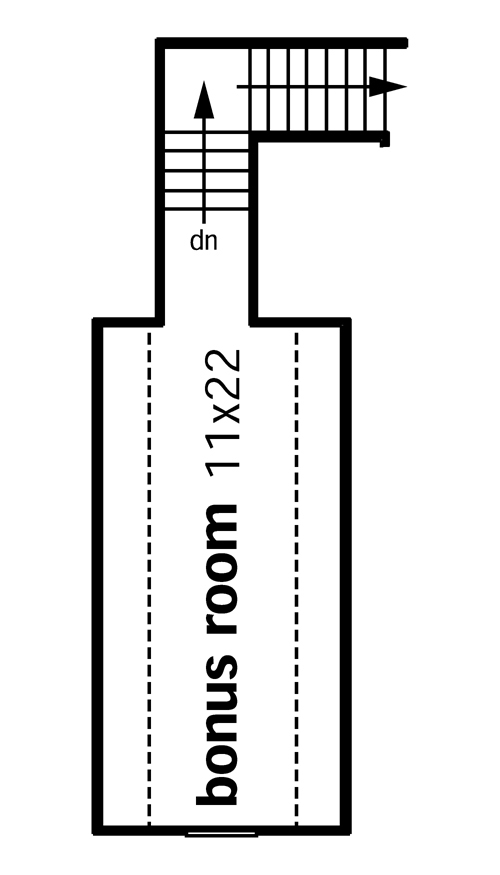

Bonus Floor Area 242 sq.ft
Area Heated 1624 sq.ft
Total Living Area 1624 sq.ft
Total Plan Area 2559 sq.ft
