PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Plan Options

Choose Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use. Our Editable CAD files + PDF Includes the Complete PDF (with unlimited build rights) and is great for for advanced customisation, engineering, and repeated construction use.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

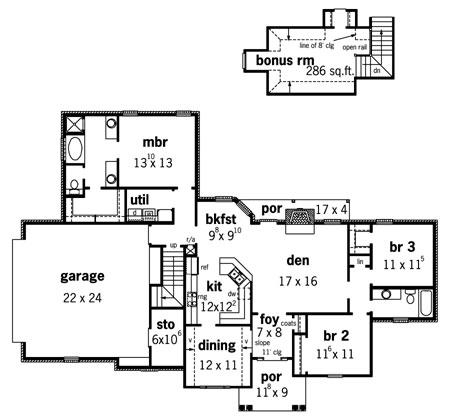

1623 Floorplan 1

Description

3 Bedrooms, 2 Baths
Split Bedroom Plan
11′ Ceiling in Foyer
Covered Front Entry & Rear Porch
Spacious Utility Room
Large Closets
Optional Bonus Room
2 Car Garage w/ Storage Room

Designer Plan Number 16231623
Bedrooms 3
Bathrooms 2
Plan Width 60100 ' 10 "
Plan Depth 427 ' 1 "
Main Ceiling 0 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code B
Roof Pitch 12 in 12
2nd Roof Pitch 10 in 12
Floors 1
First Floor Area 1623 sq.ft
Area Heated 1623 sq.ft
Total Living Area 1623 sq.ft
Total Plan Area 2678 sq.ft
Garage Bays 2
Garage Type Attached
