1625

1625

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Options

PDF – Unlimited Build

Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use.

CAD File + PDF – Unlimited Build

Editable CAD construction files + PDF for advanced customization, engineering, and repeated construction use. Includes unlimited build rights for the original purchaser.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Description

Entry foyer, dining area, master suite, bonus room & more.

Designer Plan Number 16251625
Bedrooms 3
Bathrooms 2
Plan Width 72 ' 0 "
Plan Depth 51 ' 0 "
Main Ceiling 9 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code B
Roof Pitch 12 in 12
2nd Roof Pitch 10 in 12
Floors 1
First Floor Area 1676 sq.ft
Bonus Floor Area 307 sq.ft
Area Heated 1676 sq.ft
Total Living Area 1676 sq.ft
Total Plan Area 2746 sq.ft
Garage Bays 2
Garage Type Attached
otherplans 1818,1813
designer 42

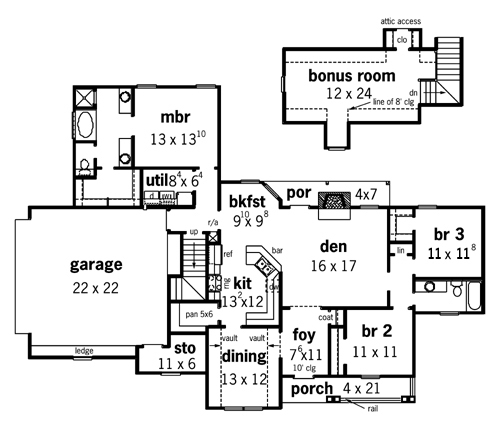

1625 Floorplan 1
