1626

1626

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Plan Options

Choose Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use. Our Editable CAD files + PDF Includes the Complete PDF (with unlimited build rights) and is great for for advanced customisation, engineering, and repeated construction use.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

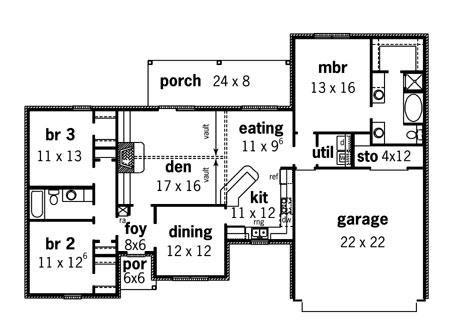

1626 Floorplan 1
Designer Plan Number 1626
Bedrooms 3
Bathrooms 2
Plan Width 66 ' 10 "
Plan Depth 44 ' 10 "
Main Ceiling 9 ' 0 "
Foundation Slab Yes
foundation Crawl Space Yes
Roof Pitch 10 in 12
2nd Roof Pitch 10 in 12
Floors 1
First Floor Area 1680 sq.ft
Area Heated 1680 sq.ft
Total Living Area 1680 sq.ft
Total Plan Area 2420 sq.ft
Garage Bays 2
Garage Type Attached
