1636-1

1636-1

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Options

PDF – Unlimited Build

Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use.

CAD File + PDF – Unlimited Build

Editable CAD construction files + PDF for advanced customization, engineering, and repeated construction use. Includes unlimited build rights for the original purchaser.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Description

3 Bedrooms, 2 Baths,
Split Bedroom Plan,
Spacious Den w/ Corner Fireplace,
Raised Ceiling in Master,
12′ Ceiling in Den, Foyer, & Dining,
Covered Front and Rear Porches,
Country French Styling,
Computer/Flex Space

Designer Plan Number 1636-11636-1
Bedrooms 3
Bathrooms 2
Plan Width 49 ' 10 "
Plan Depth 60 ' 10 "
Main Ceiling 9 ' 0 "
Second Ceiling 12 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code B
Roof Pitch 9 in 12
2nd Roof Pitch 12 in 12
Floors 1
First Floor Area 1682 sq.ft
Area Heated 1682 sq.ft
Total Living Area 1682 sq.ft
Total Plan Area 2283 sq.ft
Garage Bays 2
Garage Type Attached
designer 42

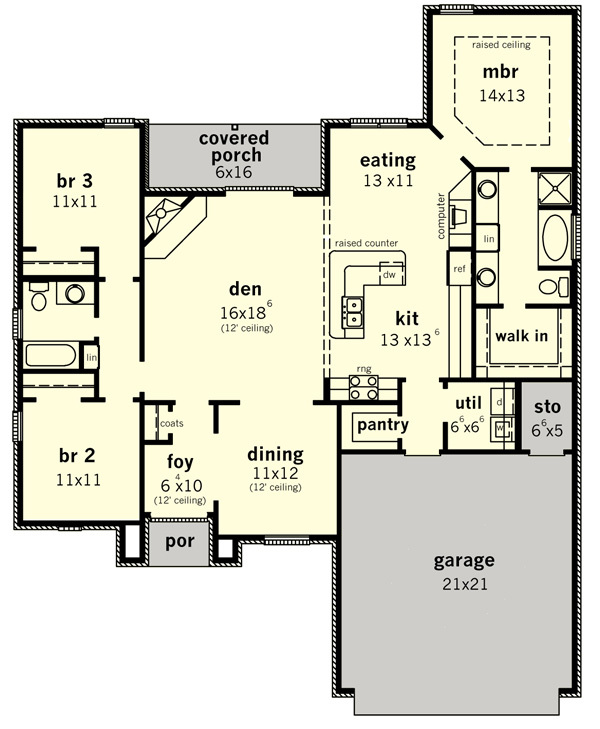

1636-1 Floorplan 1
