Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.
Bedrooms, 2 Bath
Formal Entry Foyer and Dining Room
Spacious Den with Corner Fireplace
Large Eat-in Kitchen w/Bar
Secluded Master Suite with Raised Ceiling
Large Closets all Bedrooms
Covered Front Entry
Covered Rear Porch
Ample Storage Room

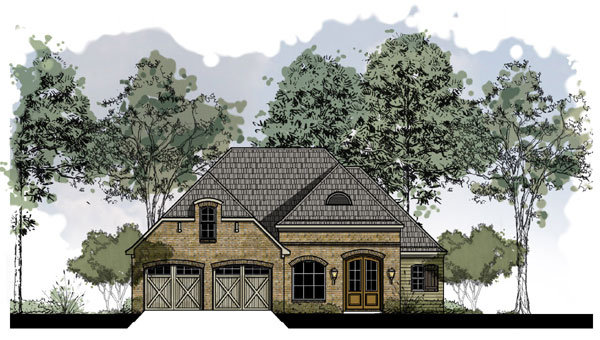

Sophisticated French Tuscany Exterior
NARROW LOT DESIGN
| Designer Plan Number | 16361636 |
|---|---|
| Bedrooms | 3 |
| Bathrooms | 2 |
| Plan Width | 49 ' 10 " |
| Plan Depth | 60 ' 10 " |
| Main Ceiling | 9 ' 0 " |
| Second Ceiling | 12 ' 0 " |
| Foundation Slab | yes |
| foundation Crawl Space | yes |
| Foundation Basement Additional | yes |
| Code | B |
| Roof Pitch | 10 in 12 |
|---|---|
| 2nd Roof Pitch | 12 in 12 |
| Floors | 1 |
| First Floor Area | 1670 sq.ft |
| Area Heated | 1670 sq.ft |
| Total Living Area | 1670 sq.ft |
| Total Plan Area | 2276 sq.ft |
| Garage Bays | 2 |
| Garage Type | Attached |
| designer | 42 |

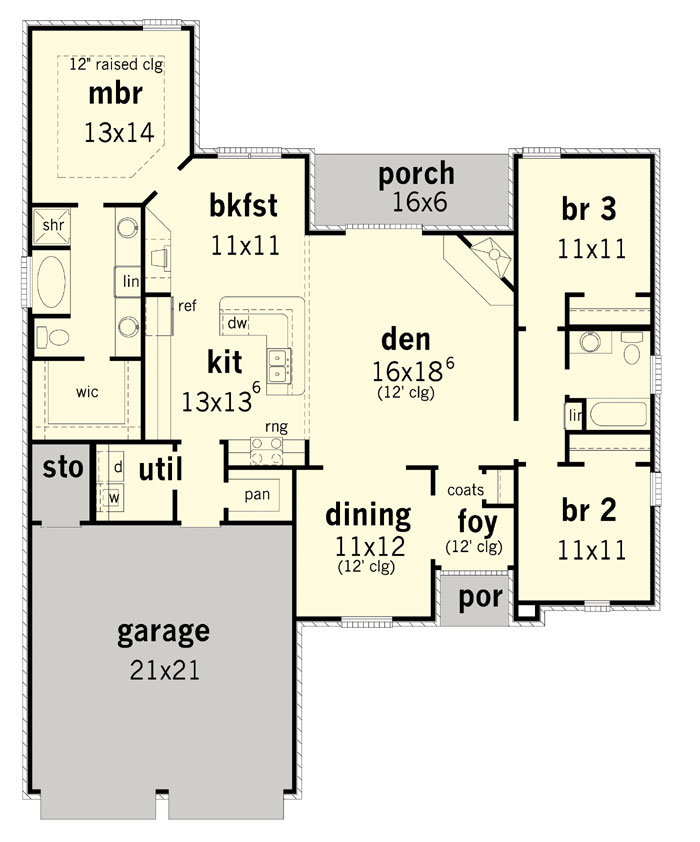

Floorplan 1
