PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Plan Options

Choose Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use. Our Editable CAD files + PDF Includes the Complete PDF (with unlimited build rights) and is great for for advanced customisation, engineering, and repeated construction use.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

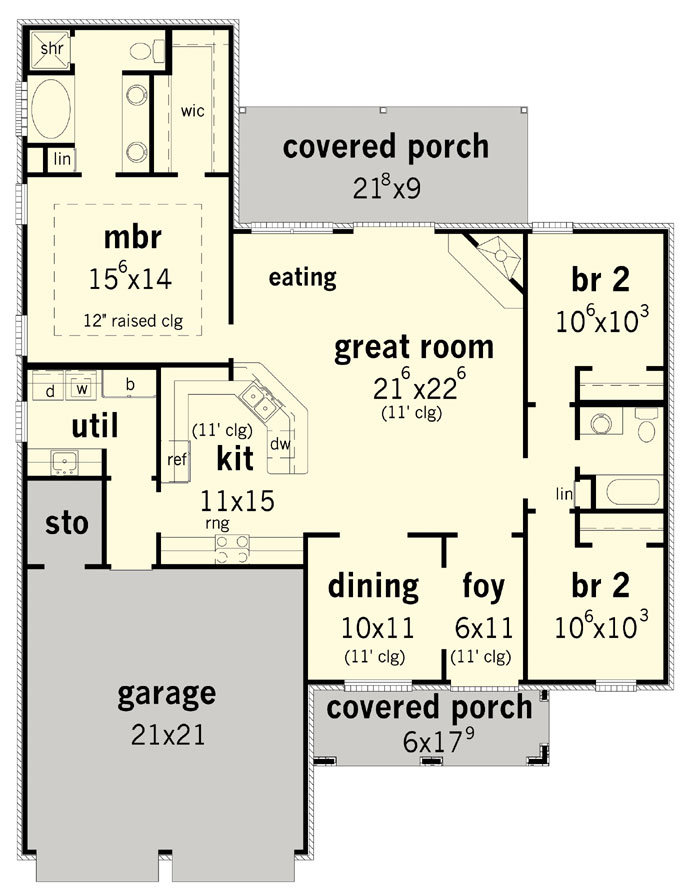

1637 Floorplan 1

Description

3 Bedrooms, 2 Bath
Formal Entry Foyer and Dining Room
Spacious Den with Corner Fireplace
Large Eat-in Kitchen w/Bar
Secluded Master Suite with Raised Ceiling
Large Closets all Bedrooms
Covered Front Entry
Covered Rear Porch
Ample Storage Room
Sophisticated French Tuscany Exterior
NARROW LOT DESIGN

Designer Plan Number 16371637
Bedrooms 3
Bathrooms 2
Plan Width 4010 ' 4 "
Plan Depth 8434 ' 2 "
Main Ceiling 0 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code B
Roof Pitch 12 in 12
2nd Roof Pitch 9 in 12
Floors 1
First Floor Area 1676 sq.ft
Area Heated 1676 sq.ft
Total Living Area 1676 sq.ft
Total Plan Area 2455 sq.ft
Garage Bays 2
Garage Type Attached
