PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Plan Options

Choose Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use. Our Editable CAD files + PDF Includes the Complete PDF (with unlimited build rights) and is great for for advanced customisation, engineering, and repeated construction use.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

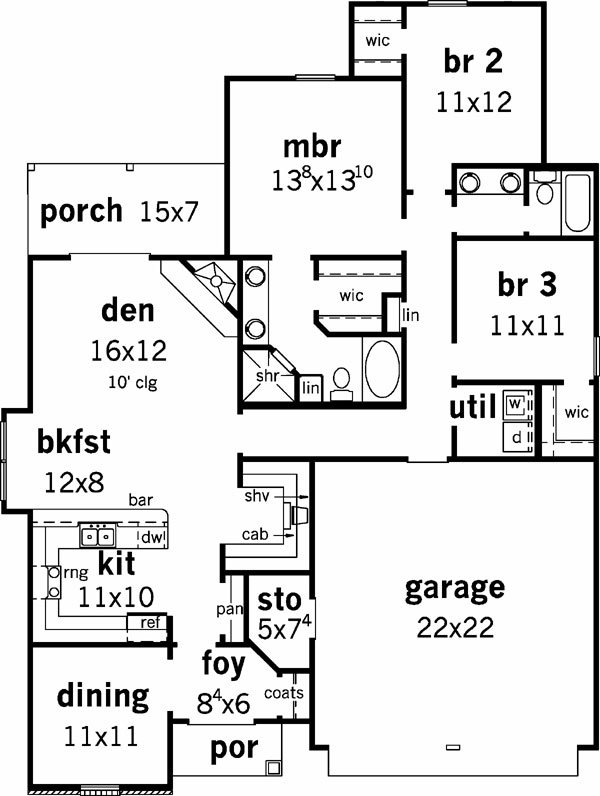

1640 Floorplan 1

Description

Beautiful traditional styling with exceptional floor plan featuring spacious living area, den with fireplace, kitchen with eating area and snack bar. Kitchen also offers a pantry and built-in computer desk. All bedrooms have walk-in closets and master features double vanity, separate shower and whirlpool tub. Plans designed for builders by a designer/builder.

Designer Plan Number 16401640
Bedrooms 3
Bathrooms 2
Plan Width 3760 ' 6 "
Plan Depth 10 ' 0 "
Main Ceiling 0 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code B
Roof Pitch 8 in 12
Floors 1
First Floor Area 1601 sq.ft
Area Heated 1601 sq.ft
Total Living Area 1601 sq.ft
Total Plan Area 2256 sq.ft
Garage Bays 2
Garage Type Attached
