1707

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Options

PDF – Unlimited Build

Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use.

CAD File + PDF – Unlimited Build

Editable CAD construction files + PDF for advanced customization, engineering, and repeated construction use. Includes unlimited build rights for the original purchaser.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Description

This classic one story home certainly makes a statement with its brick and stucco exterior, arched top windows and brick quoins. This plan features, 3 bedrooms and 2 baths, covered front and rear porches, raised ceiling in living and master bedroom. The master suite offers a vaulted ceiling in the private bath with double vanities and walk-in closet. The formal dining area is located to the rear of the house giving complete privacy for entertaining. This home is ideal for a narrow lot.

Designer Plan Number 17071707
Bedrooms 3
Bathrooms 2
Plan Width 46 ' 10 "
Plan Depth 62 ' 5 "
Main Ceiling 9 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code B
Roof Pitch 10 in 12
Floors 1
First Floor Area 1775 sq.ft
Area Heated 1775 sq.ft
Total Living Area 1775 sq.ft
Total Plan Area 2441 sq.ft
Garage Bays 2
Garage Type Attached
designer 42

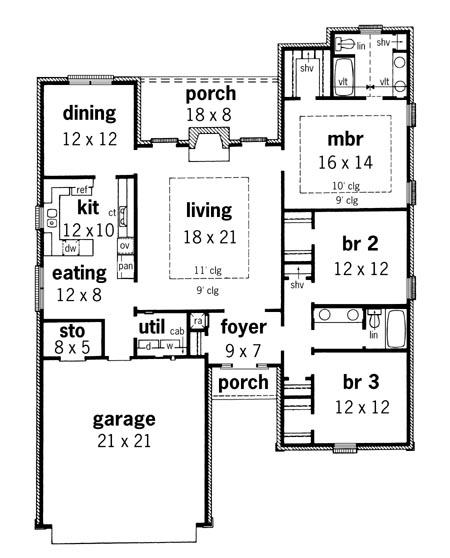

1707 Floorplan 1
