1708

1708

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Plan Options

Choose Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use. Our Editable CAD files + PDF Includes the Complete PDF (with unlimited build rights) and is great for for advanced customisation, engineering, and repeated construction use.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

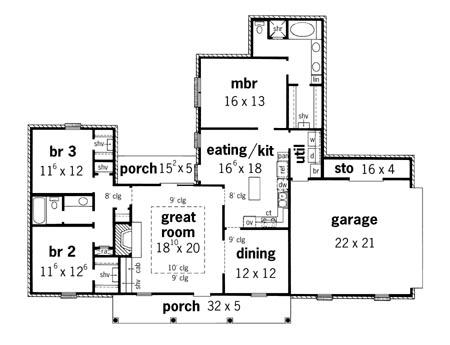

1708 Floorplan 1

Description

This sophisticated Louisiana styled home has the look of a much larger home. This plan features, 3 bedrooms and 2 baths, large master suite, raised ceiling in great room, large open kitchen with island and breakfast area, covered front and rear porch.

Designer Plan Number 17081708
Bedrooms 3
Bathrooms 2
Plan Width 57600 ' 10 "
Plan Depth 427 ' 1 "
Main Ceiling 0 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code B
Roof Pitch 10 in 12
Floors 1
First Floor Area 1754 sq.ft
Area Heated 1754 sq.ft
Total Living Area 1754 sq.ft
Total Plan Area 2542 sq.ft
Garage Bays 2
Garage Type Attached
