PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Plan Options

Choose Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use. Our Editable CAD files + PDF Includes the Complete PDF (with unlimited build rights) and is great for for advanced customisation, engineering, and repeated construction use.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

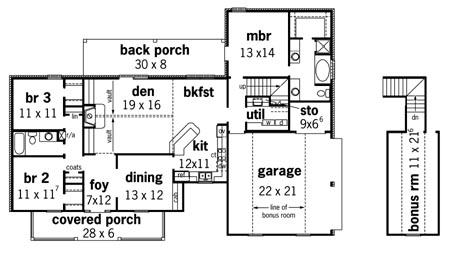

1709 Floorplan 1

Description

This traditional country styled home is perfect for the growing family. This plan features, 3 bedrooms and 2 baths, vaulted ceiling in den with fireplace flanked by built-in cabinets and shelves, whirlpool tub and separate shower with double vanity in the master bedroom, walk-in closets in all bedrooms, large storage room and bonus room over the garage.

Designer Plan Number 1709
Bedrooms 3
Bathrooms 2
Plan Width 67 ' 10 "
Plan Depth 48 ' 5 "
Main Ceiling 9 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Roof Pitch 9 in 12
2nd Roof Pitch 12 in 12
Floors 1
First Floor Area 1767 sq.ft
Area Heated 1767 sq.ft
Total Living Area 1767 sq.ft
Total Plan Area 2974 sq.ft
Garage Bays 2
Garage Type Attached
