1710

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Options

PDF – Unlimited Build

Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use.

CAD File + PDF – Unlimited Build

Editable CAD construction files + PDF for advanced customization, engineering, and repeated construction use. Includes unlimited build rights for the original purchaser.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Description

The traditional style if this home accented by brick quoins and dentil mould gives this plan a touch of elegance. This plan features, 3 bedrooms and 2 baths in a split plan layout. The open kitchen features an angled breakfast bar and is open to the eating area and den. The master suite with its whirlpool tub, separate shower and his & her vanity also offers a walk-in closet. This plan includes a covered front and rear porch, a bonus room over garage and spacious utility and storage room.

Designer Plan Number 17101710
Bedrooms 3
Bathrooms 2
Plan Width 67 ' 10 "
Plan Depth 48 ' 5 "
Main Ceiling 9 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code B
Roof Pitch 9 in 12
2nd Roof Pitch 12 in 12
Floors 1
First Floor Area 1785 sq.ft
Area Heated 1785 sq.ft
Total Living Area 1785 sq.ft
Total Plan Area 2978 sq.ft
Garage Bays 2
Garage Type Attached
otherplans 1709
designer 42

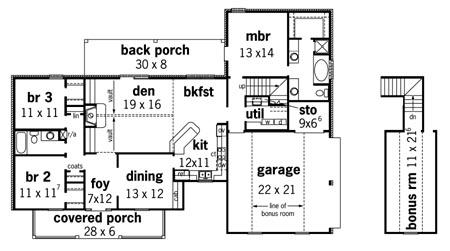

1710 Floorplan 1
