PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Options

PDF – Unlimited Build

Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use.

CAD File + PDF – Unlimited Build

Editable CAD construction files + PDF for advanced customization, engineering, and repeated construction use. Includes unlimited build rights for the original purchaser.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Description

Beautiful split bedroom plan with optional bonus room.

Total Living area with bonus room 1986 Sq. Ft.

Modifications available. Rural Development and FHA Certification available.

Designer Plan Number 17131713
Bedrooms 3
Bathrooms 2
Plan Width 55 ' 10 "
Plan Depth 68 ' 5 "
Main Ceiling 9 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code B
Roof Pitch 9 in 12
2nd Roof Pitch 10 in 12
Floors 1
First Floor Area 1766 sq.ft
Bonus Floor Area 290 sq.ft
Area Heated 1766 sq.ft
Total Living Area 1766 sq.ft
Total Plan Area 2907 sq.ft
Garage Bays 2
Garage Type Attached
designer 42

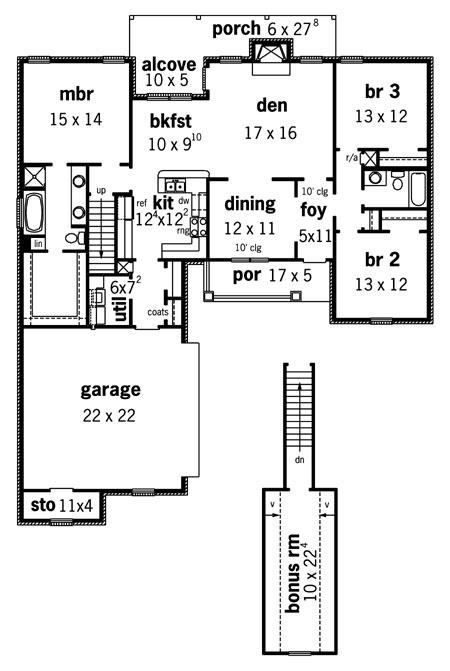

1713 Floorplan 1
