1716

1716

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Options

PDF – Unlimited Build

Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use.

CAD File + PDF – Unlimited Build

Editable CAD construction files + PDF for advanced customization, engineering, and repeated construction use. Includes unlimited build rights for the original purchaser.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Description

3 Bedroom, 2 Bath
Split Bedroom Open Plan
Raised Ceiling in Den/Master
Gourmet Kitchen w/Eating bar
Breakfast Nook w/Built-In Cabinets
Spacious Utility
Large Storage Room
Covered Front/Rear Porches
Optional Bonus Room

Designer Plan Number 17161716
Bedrooms 3
Bathrooms 2
Plan Width 53 ' 0 "
Plan Depth 64 ' 0 "
Main Ceiling 9 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code B
Roof Pitch 8 in 12
2nd Roof Pitch 12 in 12
Floors 1
First Floor Area 1768 sq.ft
Area Heated 1768 sq.ft
Total Living Area 1768 sq.ft
Total Plan Area 2915 sq.ft
Garage Bays 2
Garage Type Attached
designer 42

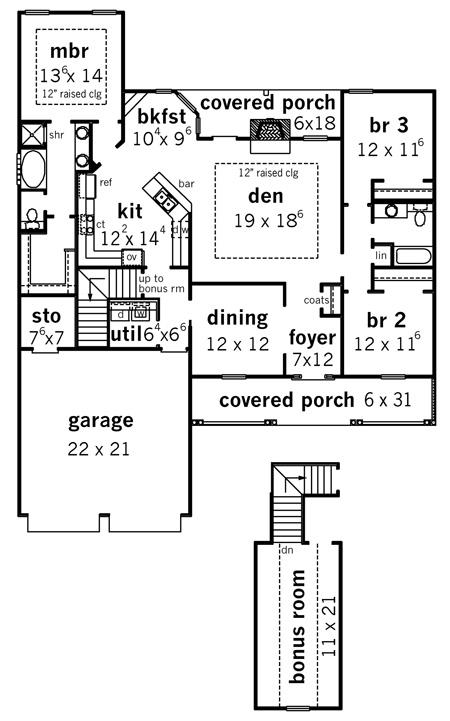

1716 Floorplan 1
