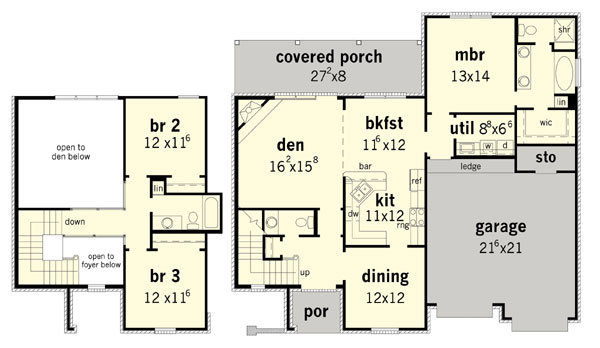

1717 Floorplan 1

Description

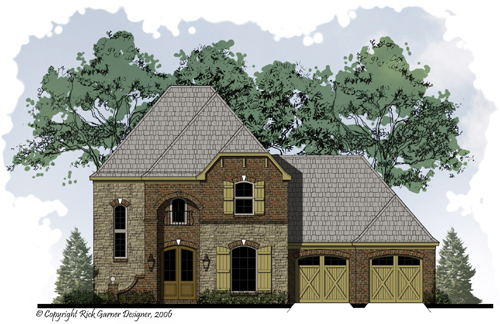

Make a grand statement with this beautiful French Tuscany 2 story home featuring spacious living area, overlook from upstairs in to the den, large utility room and secluded master suite. Enjoy those beautiful days outdoors on the covered rear porch!

Designer Plan Number 17171717
Bedrooms 3
Bathrooms 2.5
Plan Width 40934 ' 2 "
Plan Depth 8434 ' 2 "
Main Ceiling 0 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code B
Roof Pitch 9 in 12
2nd Roof Pitch 14 in 12
Floors 1
First Floor Area 1325 sq.ft
2nd Floor Area 461 sq.ft
Area Heated 1786 sq.ft
Total Living Area 1786 sq.ft
Total Plan Area 2538 sq.ft
Garage Bays 2
Garage Type Attached
