1719

1719

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Plan Options

Choose Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use. Our Editable CAD files + PDF Includes the Complete PDF (with unlimited build rights) and is great for for advanced customisation, engineering, and repeated construction use.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

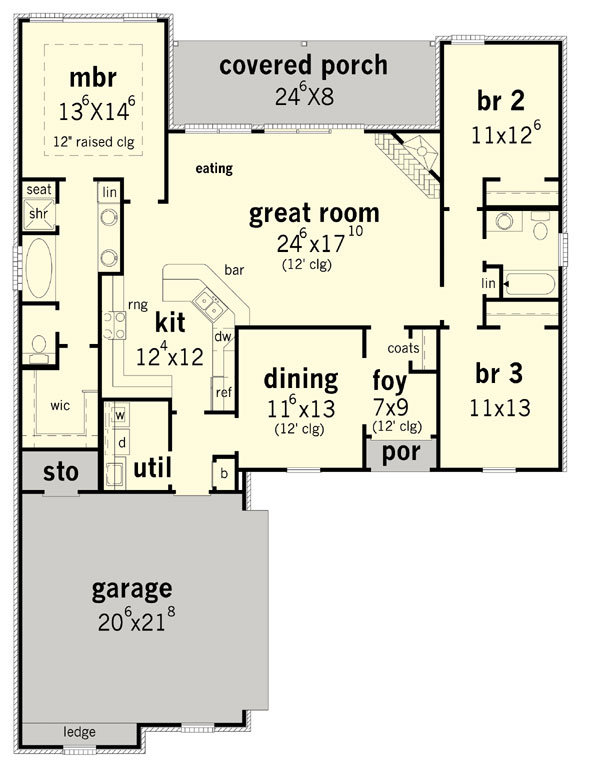

1719 Floorplan 1

Description

A breath of fresh air! What a cozy yet elegant home featuring a 3 bedroom, 2 bath split floor plan. Gather with family and relax in the comfortable great room offering a corner fireplace. Enjoy meals in the formal dining room or open breakfast room. Need some down time? Slip away to the secluded master suite and relax in the whirlpool tub or let the separate shower wash your cares away!

Designer Plan Number 17191719
Bedrooms 3
Bathrooms 2
Plan Width 40934 ' 2 "
Plan Depth 677 ' 4 "
Main Ceiling 0 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code B
Roof Pitch 9 in 12
2nd Roof Pitch 12 in 12
Floors 1
First Floor Area 1788 sq.ft
Area Heated 1788 sq.ft
Total Living Area 1788 sq.ft
Total Plan Area 2523 sq.ft
Garage Bays 2
Garage Type Attached
