1720

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Options

PDF – Unlimited Build

Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use.

CAD File + PDF – Unlimited Build

Editable CAD construction files + PDF for advanced customization, engineering, and repeated construction use. Includes unlimited build rights for the original purchaser.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Description

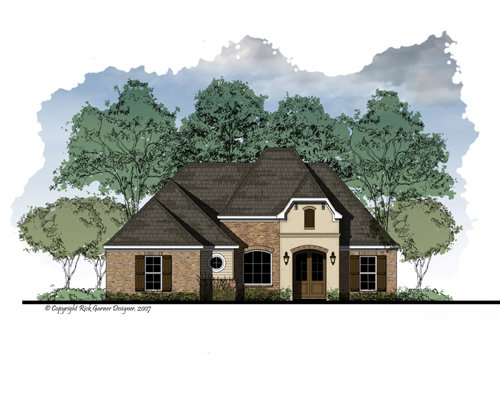

Majestic French Tuscany styling coupled with a split floor plan offers the perfect plan! Featuring open living area with corner fireplace, spacious kitchen with built-ins and a breakfast area, formal dining room, large utility room and plenty of closet and storage space. The secluded master suite includes a large bath with his/her vanity, whirlpool tub, large walk-in closet and separate shower. Breathe a breath of fresh air as you relax with friends and family on the covered rear porch!

Designer Plan Number 17201720
Bedrooms 3
Bathrooms 2
Plan Width 48 ' 10 "
Plan Depth 72 ' 10 "
Main Ceiling 9 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code B
Roof Pitch 9 in 12
2nd Roof Pitch 14 in 12
Floors 1
First Floor Area 1760 sq.ft
Area Heated 1760 sq.ft
Total Living Area 1760 sq.ft
Total Plan Area 2497 sq.ft
Garage Bays 2
Garage Type Attached
designer 42

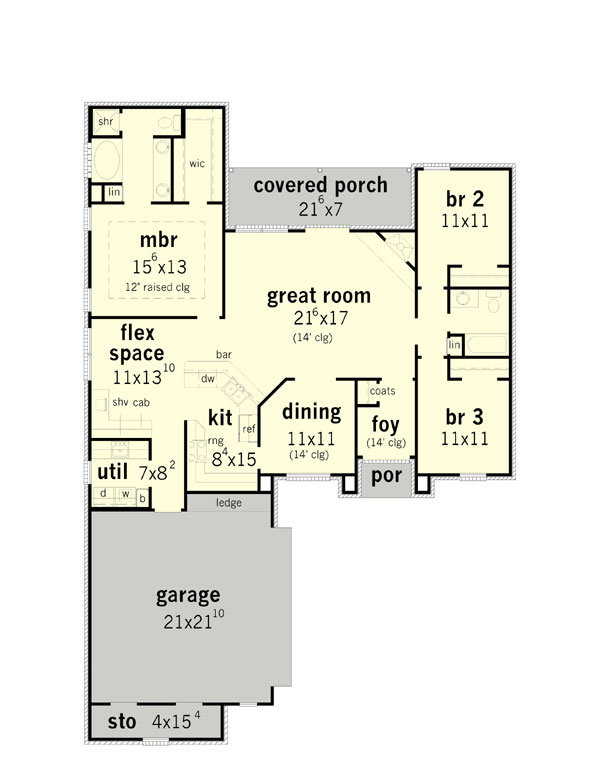

1720 Floorplan 1
