1721

1721

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Plan Options

Choose Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use. Our Editable CAD files + PDF Includes the Complete PDF (with unlimited build rights) and is great for for advanced customisation, engineering, and repeated construction use.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

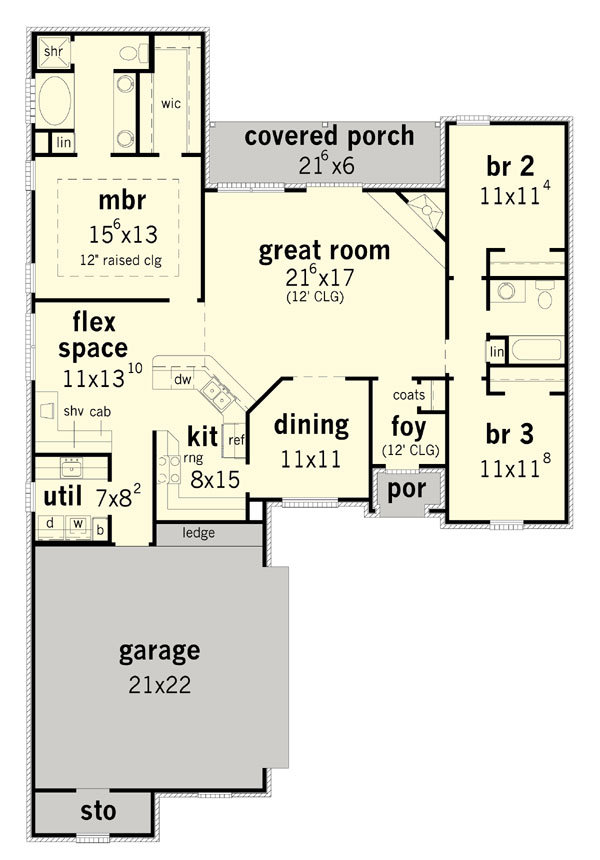

1721 Floorplan 1

Description

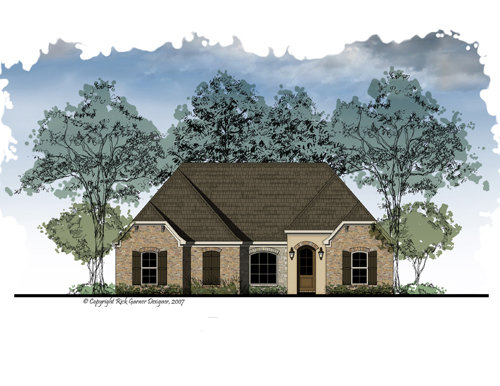

French Tuscany styling coupled with a split floor plan offers the perfect plan! Featuring open living area with corner fireplace, spacious kitchen with built-ins and a breakfast area, formal dining room, large utility room and plenty of closet and storage space. The secluded master suite includes a large bath with his/her vanity, whirlpool tub, large walk-in closet and separate shower. Breathe a breath of fresh air as you relax with friends and family on the covered rear porch!

Designer Plan Number 17211721
Bedrooms 3
Bathrooms 2
Plan Width 40100 ' 10 "
Plan Depth 8434 ' 2 "
Main Ceiling 0 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code B
Roof Pitch 9 in 12
2nd Roof Pitch 14 in 12
Floors 1
First Floor Area 1769 sq.ft
Area Heated 1769 sq.ft
Total Living Area 1769 sq.ft
Total Plan Area 2469 sq.ft
Garage Bays 2
Garage Type Attached
