1722

1722

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Plan Options

Choose Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use. Our Editable CAD files + PDF Includes the Complete PDF (with unlimited build rights) and is great for for advanced customisation, engineering, and repeated construction use.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

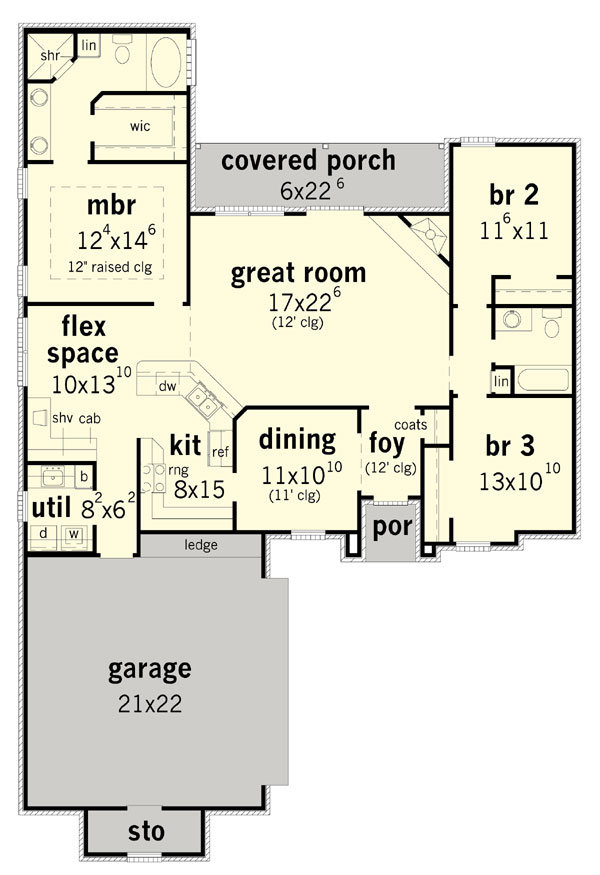

1722 Floorplan 1

Description

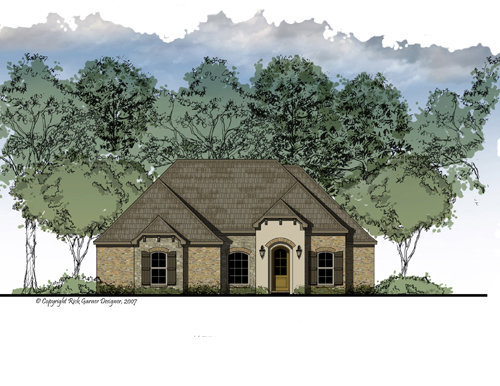

Elegance and Comfort All in One! This beautiful French Tuscany plan offers an open living area with corner fireplace in the den and spacious kitchen with space for a computer room or play area. The secluded master suite is nestled to the rear of the plan and offers a large bath with separate shower and whirlpool tub as well as walk-in closet. Relax and enjoy yourself on the covered back porch!

Designer Plan Number 17221722
Bedrooms 3
Bathrooms 2
Plan Width 40100 ' 10 "
Plan Depth 8434 ' 2 "
Main Ceiling 0 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code B
Roof Pitch 9 in 12
2nd Roof Pitch 12 in 12
Floors 1
First Floor Area 1733 sq.ft
Area Heated 1733 sq.ft
Total Living Area 1733 sq.ft
Total Plan Area 2431 sq.ft
Garage Bays 2
Garage Type Attached
