1724A

1724A

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Plan Options

Choose Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use. Our Editable CAD files + PDF Includes the Complete PDF (with unlimited build rights) and is great for for advanced customisation, engineering, and repeated construction use.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

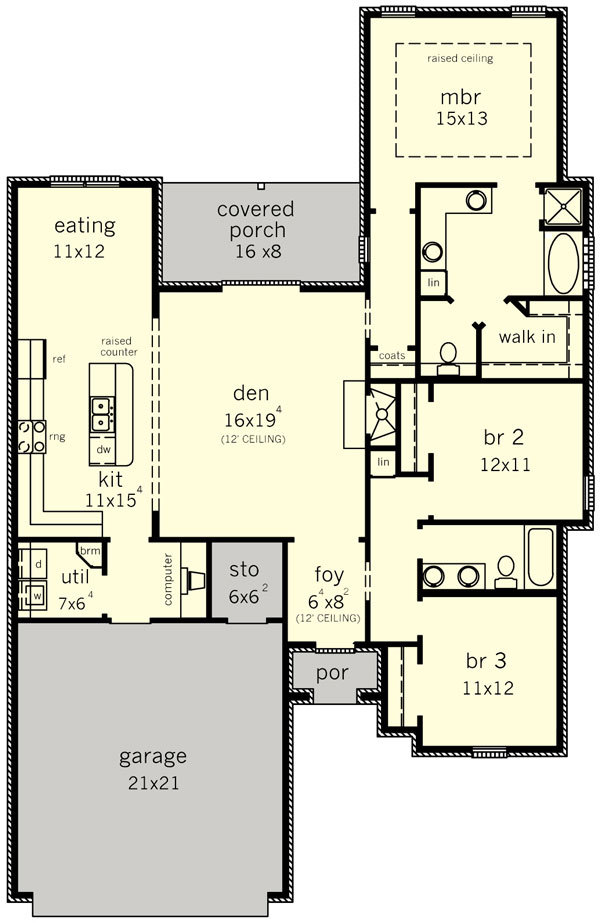

1724A Floorplan 1

Description

3 Bedrooms, 2 Baths,
Split Bedroom Plan,
Large Island Bar in Kitchen,
Raised Ceiling in Master,
Toilet Compartment in Master,
Separate Shower & Tub in Master,
12′-0″ Ceiling in Den & Foyer,
Covered Front and Rear Porches,
Office Nook,
Country French Styling

Designer Plan Number 1724A1724A
Bedrooms 3
Bathrooms 2
Plan Width 36767 ' 6 "
Plan Depth 510 ' 6 "
Main Ceiling 0 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code B
Roof Pitch 9 in 12
2nd Roof Pitch 12 in 12
Floors 1
First Floor Area 1723 sq.ft
Area Heated 1723 sq.ft
Total Living Area 1723 sq.ft
Total Plan Area 2365 sq.ft
Garage Bays 2
Garage Type Attached
