1813

1813

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Options

PDF – Unlimited Build

Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use.

CAD File + PDF – Unlimited Build

Editable CAD construction files + PDF for advanced customization, engineering, and repeated construction use. Includes unlimited build rights for the original purchaser.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Description

This home features 4 bedrooms and 2 baths, split layout, bonus room over garage, covered front and rear porches, open kitchen with breakfast bar and vaulted ceiling in dining room.

Designer Plan Number 18131813
Bedrooms 4
Bathrooms 2
Plan Width 72 ' 10 "
Plan Depth 54 ' 5 "
Main Ceiling 9 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Foundation Basement Additional yes
Code B
Roof Pitch 12 in 12
Floors 1
First Floor Area 1873 sq.ft
Bonus Floor Area 290 sq.ft
Area Heated 1873 sq.ft
Total Living Area 1873 sq.ft
Total Plan Area 2936 sq.ft
Garage Bays 2
Garage Type Attached
otherplans 1625,1818,
designer 42

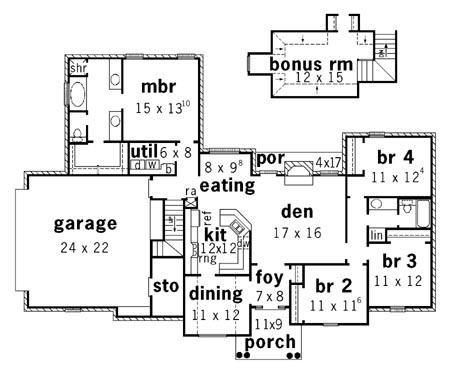

1813 Floorplan 1
