1817

1817

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Plan Options

Choose Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use. Our Editable CAD files + PDF Includes the Complete PDF (with unlimited build rights) and is great for for advanced customisation, engineering, and repeated construction use.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

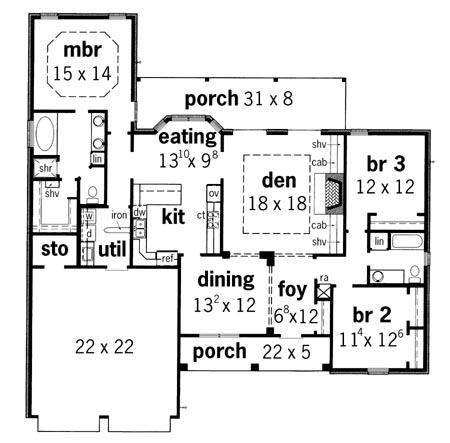

1817 Floorplan 1

Description

This plan features 3 bedrooms and 2 baths in a split plan layout, raised ceiling in den and master, den has fireplace flanked by cabinets and shelves, twin french doors in den, spacious kitchen with eating bar, covered front and back porches.

Designer Plan Number 18171817
Bedrooms 3
Bathrooms 2
Plan Width 48434 ' 2 "
Plan Depth 427 ' 1 "
Main Ceiling 0 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Code B
Roof Pitch 10 in 12
Floors 1
First Floor Area 1899 sq.ft
Area Heated 1899 sq.ft
Total Living Area 1899 sq.ft
Total Plan Area 2792 sq.ft
Garage Bays 2
Garage Type Attached
