1818

1818

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Plan Options

Choose Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use. Our Editable CAD files + PDF Includes the Complete PDF (with unlimited build rights) and is great for for advanced customisation, engineering, and repeated construction use.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Request a Modification

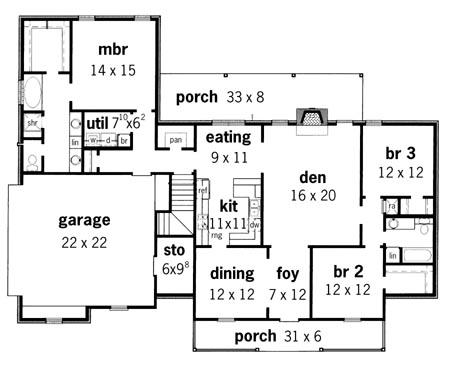

1818 Floorplan 1

Description

This plan features, 3 bedrooms and 2 baths, elegant master suite with whirlpool tub and separate shower, large kitchen with breakfast bar, covered front and rear porches.

Designer Plan Number 1818
Bedrooms 3
Bathrooms 2
Plan Width 67 ' 10 "
Plan Depth 54 ' 5 "
Main Ceiling 9 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Roof Pitch 8 in 12
2nd Roof Pitch 12 in 12
Floors 1
First Floor Area 1884 sq.ft
Area Heated 1884 sq.ft
Total Living Area 1884 sq.ft
Total Plan Area 3248 sq.ft
