1819

1819

PDF – Single Build

Complete printable PDF construction drawings with permission to build the design one time. Ideal for homeowners, builders, or developers constructing a single project.

$1,400.00

Additional Options

PDF – Unlimited Build

Complete PDF construction drawings with unlimited build rights for the original purchaser. Perfect for builders and developers planning multiple builds or repeated use.

CAD File + PDF – Unlimited Build

Editable CAD construction files + PDF for advanced customization, engineering, and repeated construction use. Includes unlimited build rights for the original purchaser.

Not Sure Which Option Is Right for You?

Need help choosing the best file type or license for your project? View our detailed Format & Licensing Guide here or contact us for assistance.

Description

This plan features 3 bedrooms and 2 baths, master suite offers whirlpool tub and separate shower, breakfast bar in kitchen, bay window in eating area, covered rear patio.

Designer Plan Number 18191819
Bedrooms 3
Bathrooms 2
Plan Width 69 ' 10 "
Plan Depth 48 ' 10 "
Main Ceiling 9 ' 0 "
Second Ceiling 0 ' 0 "
Foundation Slab yes
foundation Crawl Space yes
Code B
Roof Pitch 12 in 12
Floors 1
First Floor Area 1882 sq.ft
Area Heated 1882 sq.ft
Total Living Area 1882 sq.ft
Total Plan Area 2712 sq.ft
Garage Bays 2
Garage Type Attached
designer 42

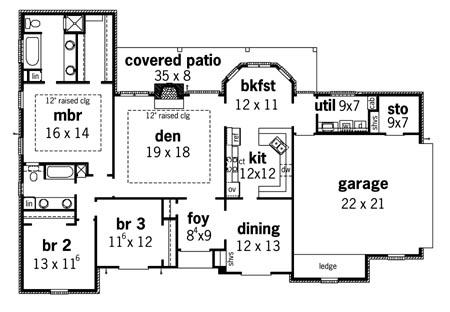

1819 Floorplan 1
